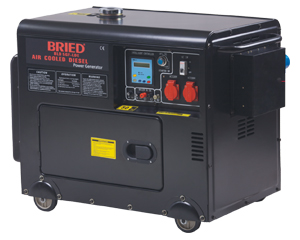

BLD 5GF-LDEC
♦ Adopt unique engine drive technology, powerful and the service life be more longer than before
♦ Adopt larger muffler, low noisy
♦ Perfect fuel injection technology
♦ Very suitable to use for emergency electricity shut off or natural calamity.


Model

BLD 5GF-LDEB

GENERATOR

Type

DIESEL GENERATOR SETS

Rated AC Output (KW)

5.0

Max AC Output (KW)

5.5

Frequency (Hz)

50Hz/60Hz

Voltage (v)

110/120/220/230/240/380

Phase

Single/Three

Power Factor   cos Φ

1.0

ENGINE



Model

BLD186FA

Type

Forced-Air Cooling/single Cylinder/4-stroke/ Diesel engine

Bore × Stroke

86 X 72

Displacement   ml

418 CC

Rated Power  kw

7.5

Max Power    kw

8

Engine Speed (r/pm)

50Hz /3000, 60Hz /3600

Recommended Fuel

Diesel Light Fuel

Fuel Tank Capacity L

16

Fuel Consumption  h

273g/kw.h

Engine Oil Capacity  L

1.65

Starting System

Electric starter

Continuous Work Time 70% load (hours)

8

Noise Level (7m)

96 (4m)

DIMENSIONS

Packing Dimension  mm

945×550×770

N.W/G.W   kg

165/175

20' FT        unit

70

40' HQ       unit

144
