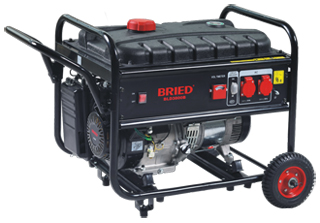

BLD 3800B
♦ Powerful and the service life be more longer than before
♦ Adopt larger muffler, low noisy, Portable
♦ Very suitable to use for emergency electricity shut off or natural calamity.


Model

BLD 3800

GENERATOR

Type

GASOLINE GENERATOR SETS

Rated AC Output (KW)

3.5

Max AC Output (KW)

3.8

Frequency (Hz)

50Hz/60Hz

Voltage (v)

110/120/220/230/240

Phase

Single

Power Factor   cos Φ

1.0

ENGINE



Model

BLD 177F

Type

Over head Value/Forced-Air Cooling/single Cylinder/4-stroke Gasoline engine

Bore × Stroke

77 X 58

Displacement   ml

270 CC

Rated Power  kw

6.5

Max Power    kw

6.75

Engine Speed (r/pm)

50Hz /3000, 60Hz /3600

Ignition Mode

T.D.I

Recommended Fuel

Unleaded Gasoline

Fuel Tank Capacity L

25.0

Fuel Consumption  h

360g/kw.h

Engine Oil Capacity  L

1.1

Starting System

Pulling recoil starter/electric starter

Continuous Work Time 70% load (hours)

12

Noise Level (7m)

96 (4m)

DIMENSIONS

Packing Dimension  mm

695×522×545

N.W/G.W   kg

75/78

20' FT        unit

130

40' HQ       unit

280
