BLD"6"
 |

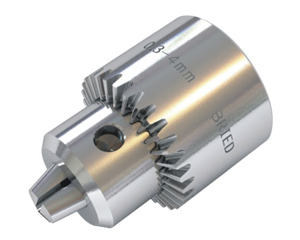

Product features: High precision & durability, it has been applied for metal cutting machines. moreover, its fashional appearance will make the machines extraodinary. The applicable range: Heavy-duty, ultra-heavy duty tasks, it is commonly used in lathe, miller, CNC and woodworking machinery . It may endure high-speed cutting. Accuracy inspection: It utilizes two different diam. and length checkrod to examine the radial skip. Large rod Φ13 length 105mm, small rod Φ6 length 65mm. The max. radial skip of this product will not exceed 0.16mm. It reaches to national standard A Level accuracy criterion. The drillspanner wheel hole hardness is HRC48-50, grip jaw nut is HR53-55, spanner wheel; external sleeve are HRC48-50. The rear taperyses the drill clamp cone gauge (GB-11855) for its painted inspection. The contact-time is no less than 85%. It is 70% higher than the national standard. Torque: GB/T6087-93 fixed input 24MM. Output 14N.M. The product may maximumly input 50N.M and ouput 7N.M. with no damage to various spares of the drill chuck. | ||||||||||||||||||||||||
Jacquard Taper Mount:
| |||||||||||||||||||||||||
