BLD"2"
 |

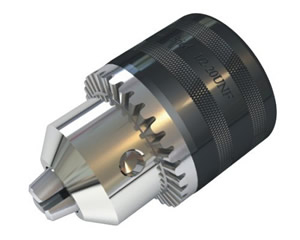

Product features: ♦ Double-side knurling for outer cylinder of the external sleeve, mid concave imprinting, the surface has been electrophoretically treated with drill chrominum-plated treatment. It is of pleasing appearance and strong anti-rust capability. The applicable range: It is most ideal high quality product used in the hand electric drill, percussion drill. | |||||||||||||||||||||||||||||||||||||||
Jacquard Taper Mount:
|
Morse Taper Mount:
| Modle | mm | inch | Taper mount | mm | mm | KG | KEY |
| 22506 | 0.6-6 | 1/64-1/4 | B10 | 29 | 51.5 | 0.102 | Q10 |
| 22510 | 1.0-10 | 1/32-3/8 | B12 | 33 | 58 | 0.152 | Q10 |
| 22513 | 1.5-13 | 1/16-1/2 | B16 | 42 | 71 | 0.246 | Q13 |
| 22513A | 1.5-13 | 1/16-1/2 | B12 | 42 | 71 | 0.305 | Q13 |
| 22516 | 3.0-16 | 1/8-5/8 | B16 | 52 | 87 | 0.479 | Q16 |
| 22516A | 3.0-16 | 1/8-5/8 | B18 | 52 | 87 | 0.625 | Q16 |
| 22516D | 1.5-16 | 1/32-5/8 | B16 | 52 | 90 | 0.625 | Q16 |
| 22516D | 1.5-16 | 1/32-5/8 | B18 | 52 | 90 | 0.625 | Q16 |
| 22516R | 3.0-16 | 1/8-5/8 | B16 | 52 | 93 | 0.650 | Q16 |
| 22516R | 3.0-13 | 1/8-5/8 | B18 | 52 | 93 | 0.650 | Q16 |
Thread Mount : M/UNF
| Modle | mm | inch | Taper mount | mm | mm | KG | KEY |
| 23506 | 0.6-6 | 1/64-1/4 | 3/8-24UNF | 29 | 51.5 | 0.104 | Q10 |
| 23510 | 1.0-10 | 1/32-3/8 | 3/8-24UNF | 33 | 60 | 0.152 | Q10 |
| 23510A | 1.0-10 | 1/32-3/8 | 1/2-20UNF | 33 | 60 | 0.160 | Q10 |
| 23510D | 1.0-10 | 1/32-3/8 | 3/8-24UNF | 33 | 60 | 0.160 | Q13 |
| 23610 | 1.0-10 | 1/32-3/8 | M12×1.25 | 33 | 60 | 0.160 | Q10 |
| 23513 | 1.5-13 | 1/16-1/2 | 1/2-20UNF | 42 | 71 | 0.305 | Q13 |
| 23513A | 1.5-13 | 1/16-1/2 | 3/8-24UNF | 42 | 71 | 0.305 | Q13 |
| 23516 | 3.0-16 | 1/8-5/8 | 1/2-20UNF | 52 | 87 | 0.625 | Q16 |
| 23516A | 3.0-16 | 1/8-5/8 | 5/8-16UNF | 52 | 87 | 0.625 | Q16 |
| 23616 | 3.0-16 | 1/32-5/8 | M12×1.25 | 52 | 87 | 0.625 | Q16 |
